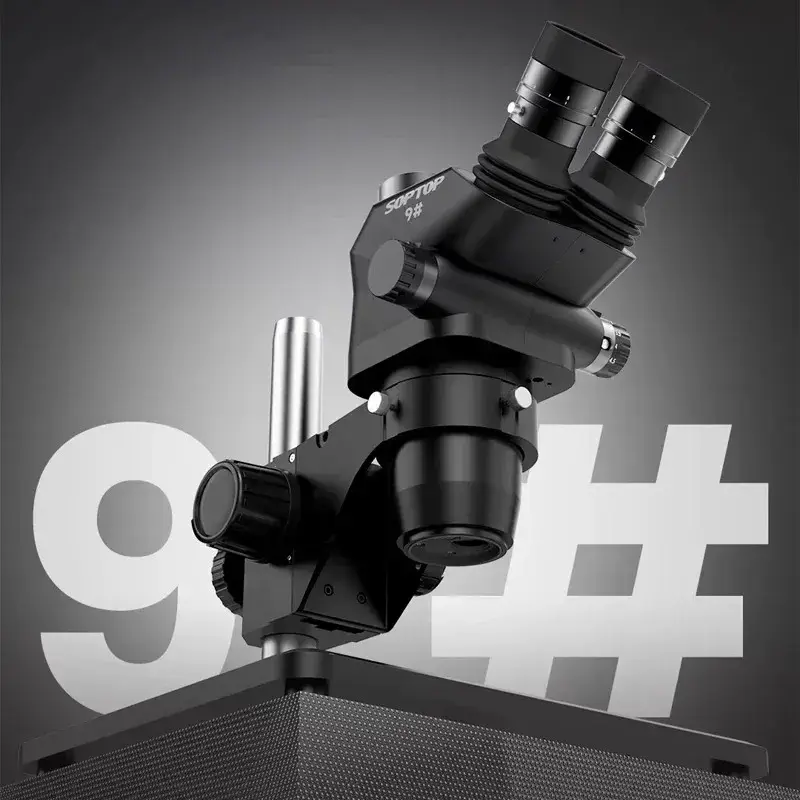

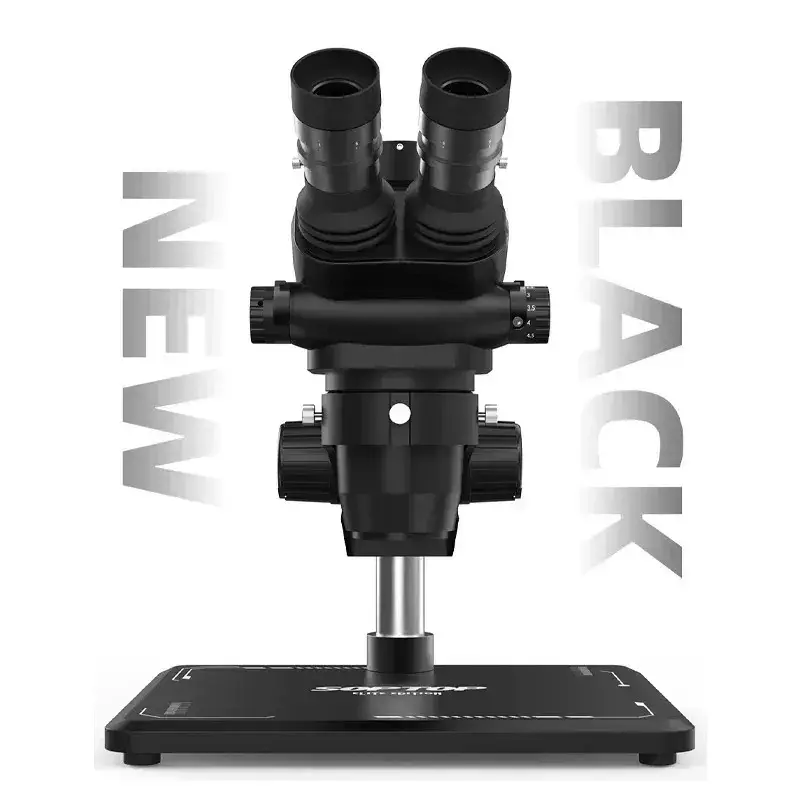

Soptop #9 HD Trinocular Stereo Continuous Zoom Industrial Microscope for PCB Repair

Soptop #9 HD Trinocular Stereo Continuous Zoom Industrial Microscope for PCB Repair





Features:

• Soptop 9# trinocular HD microscope, maintenance inspection, biological research, medical anatomy

• Maintenance field for mobile phones, computers, home appliances, precision parts repair

• It is used for medical research, biological research, and assisting scientific research workers

• Watch repair and assembly, circuit inspection, and other fields

• More than 300 parts are precisely matched and hundreds of assembly processes are carried out, which lasted more than 20 months of research and development

• Mobile phone repair, computer repair, small home appliance repair, scientific research, and can be adapted to different usage scenarios

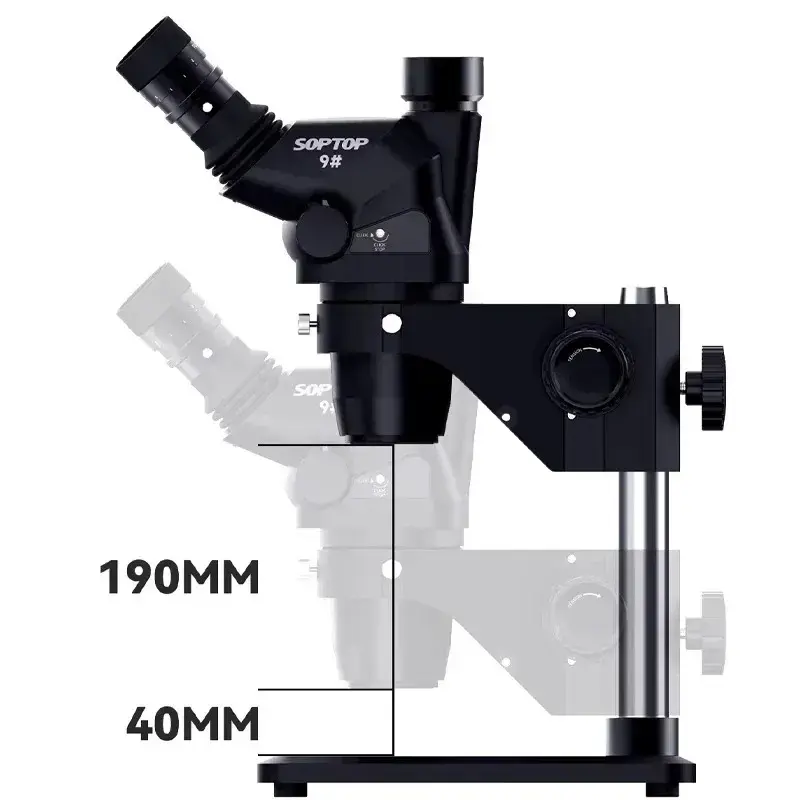

• 50MM macro adjustment, precision linear slides with strong stability

• Quick macro focus adjustment, bilateral rotatable adjustment, smooth hand feel without setbacks

• 0.67X~4.5X continuous zoom, high precision optical zoom

• 360° Focusing handwheel, easy and smooth zoom

• Reserved camera interface for taking pictures and recording videos

• Set up a high-definition industrial camera for electronic magnification, recording of cases, and precise measurements

• The magnification lens is locked to prevent changes, and the external camera can be shielded and switched at will, making the product more worry-free

• Myopia adaptation adjustment, binocular interpupillary distance adaptation adjustment

• It can be used without wearing glasses, and the interpupillary distance between the eyes can be adapted to different users

• Black I White Bi-color plate, adapt to different color carriers

• High-temperature resistance, corrosion resistance, dismantling, and can be adapted to the bottom light source

Specification:

• Model: 9#

• Optical magnification: 6.7-4.5X

• viewing head: Trinocular observation head, 45*tilt, continuous zoom objective lens 0.67-4.5X, interpupillary distance adjustment range 52mm-76mm, With fixed-rate fixed-magnification mechanism and the highest and lowest times adjustment locking function

• Eyepiece: High eye point and large field of view eyepieces PL10X/22mm, with ad ustable diopter

• Working distance: 110mm

• Focus bracket: The focusing handwheel is adjustable, and the lifting range is 50mm

• Work platform: Black and white platen

• Pedestal: Column type small fan-shaped flat base. Column diameter 32mm, height 228mm, base size 273*206mm

• C interface: 0.5X camera adapter, C-type interface, adjustable focus

• Auxiliary objective: 0.3X/0.4X/0.5X/0.75X/1.5X/2X

• Optional eyepiece: 15X/16mm、20X/12mm

• Optional auxiliary objective: 0.3X/0.4X/0.5X/0.75X/1.5X/2X

Package includes:

• 1 x Microscope

• 1 x Microscope Base
